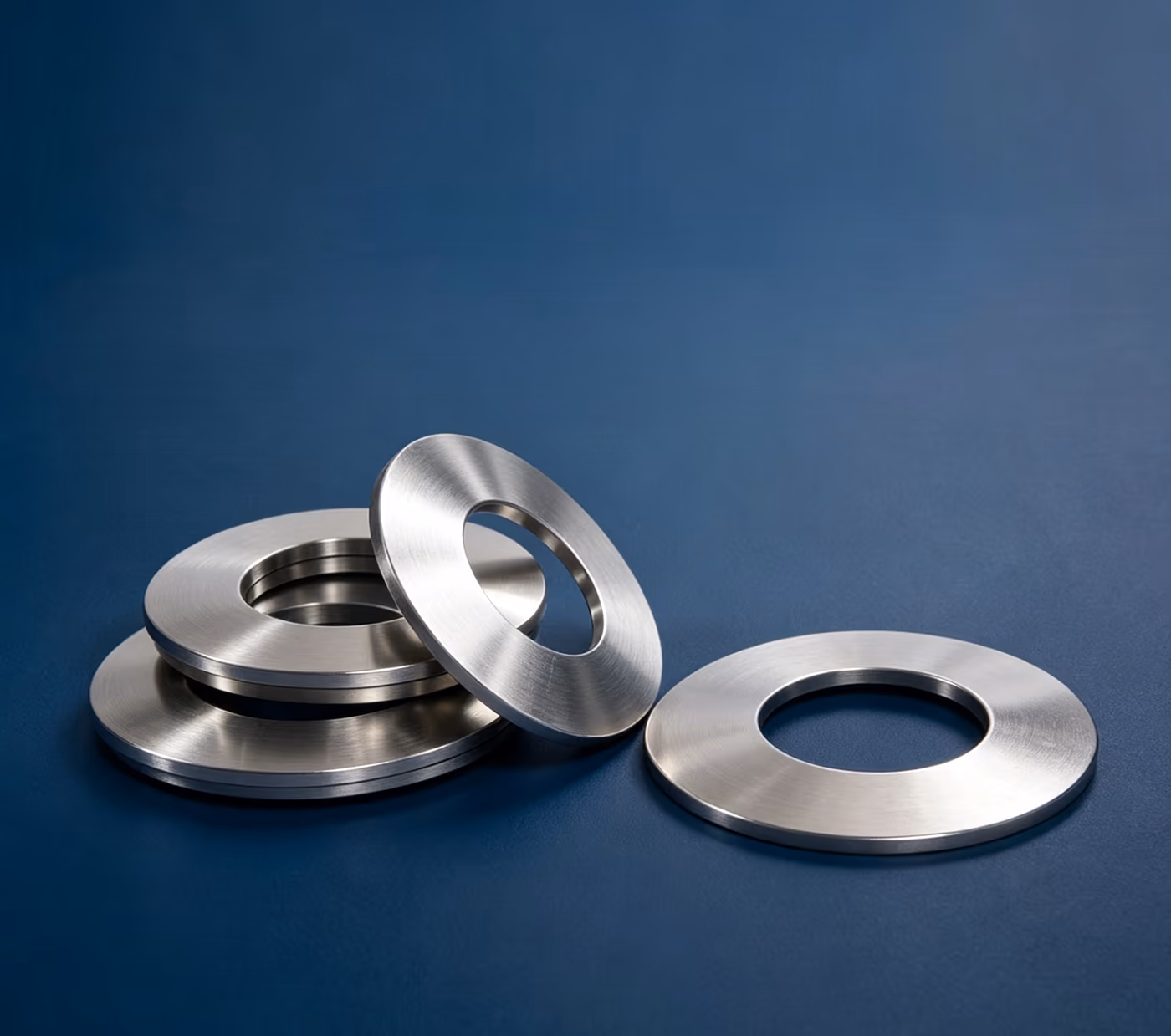

Custom Ti 64 / Ti-6Al-4V Disc Springs RFQ
Request custom Ti 64, Ti-6Al-4V, TC4 and TC6 titanium disc springs by drawing, load, travel and environment. FeTech reviews the geometry before quotation.
Read GuideTi 64 / Ti-6Al-4V Titanium Springs | Manufacturer RFQ
Request Ti 64, Ti-6Al-4V, TC4 and TC6 titanium spring quotes for lightweight, corrosion-resistant and non-magnetic assemblies.
Engineered for Reliable Load Control
Request Ti 64, Ti-6Al-4V, TC4 and TC6 titanium spring quotes for lightweight, corrosion-resistant and non-magnetic assemblies.
- TC4 / Ti-6Al-4V / Ti 64 / Grade 5 material option
- TC6 titanium alloy option for higher strength requirements
- Custom load curve, fatigue and corrosion review required
If you need to estimate load, deflection or stack arrangement, use the Disc Spring Design Calculator before sending drawings for engineering review.
Standard Sizes
Custom titanium alloy disc spring and elastic component dimensions built to drawings, load curves and installation envelopes.
Materials
TC4 / Ti-6Al-4V / Ti 64 / Grade 5 and TC6 titanium alloy.
Temperature Range
-200 deg C to +300 deg C typical for spring review; final limit depends on stress, time at temperature and corrosion environment.
Recommended Applications
- Aerospace lightweight preload systems
- Marine corrosion-resistant assemblies
- Medical and precision equipment
- Weight-sensitive industrial mechanisms
- Custom Ti-6Al-4V Belleville washers where steel weight or magnetism is a problem
RFQ DATA CHECKLIST
Send the application data engineers need first
For a faster quotation, include the basic spring geometry, target load and service condition. If a value is not confirmed yet, send the drawing or installed photos and mark it as estimated.
- OD / outside diameter
- ID / inside diameter
- Thickness and free height
- Material or working environment
- Quantity and delivery target
- Target load and working deflection
- Working temperature
- Application, drawing or photos
Key Product Data
TC4 / Ti-6Al-4V lightweight alloy
Ti 64 / Grade 5 titanium spring request path
TC6 high-strength titanium option
Custom disc spring and elastic component geometry
Titanium Alloy Spring Material Data
| Grade | Common designation | Density | Typical tensile strength | Typical yield strength | Elastic modulus |
|---|---|---|---|---|---|
| TC4 | Ti-6Al-4V / Grade 5 | 4.43 g/cm3 | 895-1100 MPa | 825-1000 MPa | 110-114 GPa |
| TC6 | Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si | about 4.55 g/cm3 | 980-1180 MPa | 880-1050 MPa | 110-120 GPa |
Values are typical datasheet ranges. Final spring rating should be based on certified mill data, heat treatment and fatigue validation.
Titanium Alloy Selection Notes
| Grade | Best fit | Main advantage | Design caution |
|---|---|---|---|
| TC4 / Ti-6Al-4V | Lightweight corrosion-resistant components | High specific strength and broad availability | Lower modulus than steel changes load-deflection behavior |
| TC6 | Higher strength titanium spring components | Better strength margin after suitable heat treatment | Requires tighter review of heat treatment, fatigue and sourcing route |
Titanium alloy disc spring sourcing notes
Ti-6Al-4V Belleville washer, TC4 disc spring and titanium alloy spring component RFQs usually need lower weight, corrosion resistance or non-magnetic behavior rather than a direct steel replacement.
Useful RFQ inputs include target load, working deflection, installation envelope, weight limit, temperature, corrosion media, magnetic requirement, fatigue cycle and whether TC4 or TC6 is preferred.
Because titanium has a lower elastic modulus than steel, the geometry and stack layout should be recalculated before a standard spring drawing is reused. For Ti 64 springs, send the load target, available height, weight limit and whether the part must remain non-magnetic.
Related Technical Guides
Common Product Questions
When should titanium alloy disc springs be considered?
They are useful when weight reduction, corrosion resistance or non-magnetic behavior matters enough to justify lower modulus and higher material cost compared with steels.
Can TC4 replace spring steel directly?
Usually not as a drop-in substitution. Titanium has a lower elastic modulus, so the spring geometry and stack design should be recalculated around the target load and travel.
Are Ti 64 springs the same review path as TC4 / Ti-6Al-4V?
In most sourcing discussions, Ti 64, Ti-64, Grade 5 and TC4 point to the same Ti-6Al-4V titanium alloy family. The practical review is whether the part should be a Belleville washer, disc spring stack or custom titanium elastic component.
